Slitting machine manufacturer information

Wenzhou Yizhang Machinery Co., Ltd. was established in October 2004. It is approved by Zhejiang Foreign Trade and Economic Cooperation Bureau to obtain the right to import and export trade. The first batch of professional production of paper pipette machinery, silk screen machinery, plastic machinery , one of the mechanical equipment companies for packaging machinery and paper processing machinery.

In order to provide our customers with the best machines and to ensure the reliable quality of our machines, our factory employs skilled engineers and uses state-of-the-art technology, with raw materials and components carefully selected. At the same time, we have established close cooperative relations with domestic universities and research institutes. In addition, we have established strong relationships with reliable equipment suppliers and our service team has extensive industry experience.

Phone: + 86-577-86009991 / 86059991

Fax: + 86-577-86066075

product description

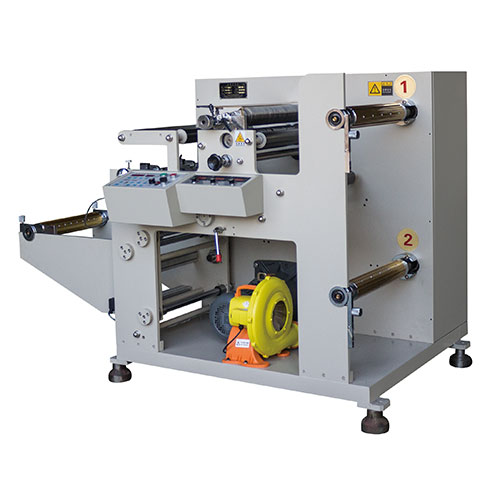

                          HSF-450 automatic slitting machine

The HSF-450 automatic slitting machine is an auxiliary product of the automatic die cutting machine. This machine is suitable for cutting narrow sheets of paper. It has a meter and a digital counter. The unwinding is controlled by two photoelectric eyes. The whole machine is compact, fast, efficient, easy to operate and stable in operation.

Product parameters

• Model: HSF-450
• Cutting speed: 120 m / min
• Maximum material width: 420 mm
• Cutting width: 410 mm
• Minimum cutting width: 18mm (customizable: 10mm)
• Maximum unwinding diameter: 600mm / 1000mm
• Maximum rewinding diameter: 600 mm
• Overall size: 1200x900x1400mm
• Machine weight: about 600 kg

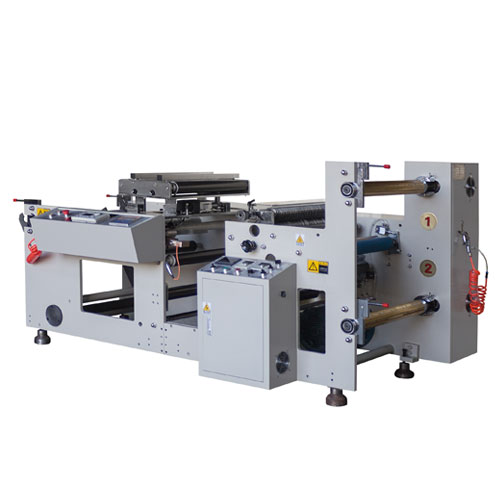

                       HSF-620 automatic slitting machine

Product parameters

• Model: HSF-620
• Maximum cutting speed: 150 m / min
• Accuracy: ± 0.15 mm
• Correction accuracy: ±0.15 mm
• Maximum material width: 620 mm
• Minimum slit width: 10 mm
• Maximum slit width: 600 mm
• Maximum unwinding diameter: thousand millimeters
• Maximum rewind diameter: 600 mm
• Total power: 7.5 kW
• Voltage: 380V50HZ
• Machine size: 2.5 * 1.45 *1.18 meters
• Machine weight: 1250 kg

HSF-620 automatic slitting machine is assembled by main motor, inverter, EPC control, electromagnetic clutch, magnetic brake, ventilation shaft, pneumatic backup and so on.

The traction device is a two-roller phase-pressure driving material, the driving roller is a steel roller, and the pressing roller is a rubber roller. The pressure roller clutch mode is pneumatic, the traction roller is rotated by the motor, and the cutter and the reel are driven by the gear sprocket. The main motor power is 5.5KW and the inverter power is 5.5KW.
