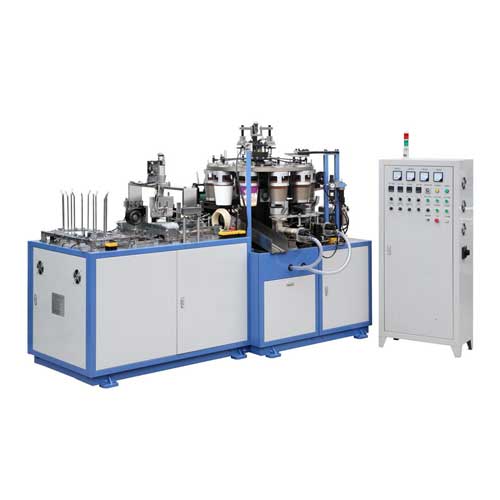

SCF-60D Middle Speed Paper Bowl Machine
SCF-60D Automatic paper bowl forming machine is based on ordinary paper cup machine. Through improvement, the mechanical strength and stability of the whole machine are greatly improved. This model has continuous processes such as oil filling,die cutting bottom, heating, knurling, crimping, and blowing out. It can produce single and double-sided coated needle bowls, ice cream and other containers. This machine adopts the characteristics of air blowing device, high-speed precision intermittent dividing machine, accurate and reliable, and is the first choice for the replacement of paper bowl machine production industry.
Technical parameter：
| Model | SCF-60D |
| Bowl size | 40-120oz |
| Capacity | 30-35pcs/mim |
| Top diameter | 120-220mm |
| Bottle diameter | 90-180mm |
| Height | 100-200mm |
| Motor power | 2.2kw |
| Heating power | 8kw |
| Total power | 15kw |
| Air pressure | 0.4m³/min 0.5MPa |
| Raw material | 350-420g/㎡（single or double PE coated paper） |
| Weight | 4500kg |
| Overall dimension | 3300×2000×2200mm |

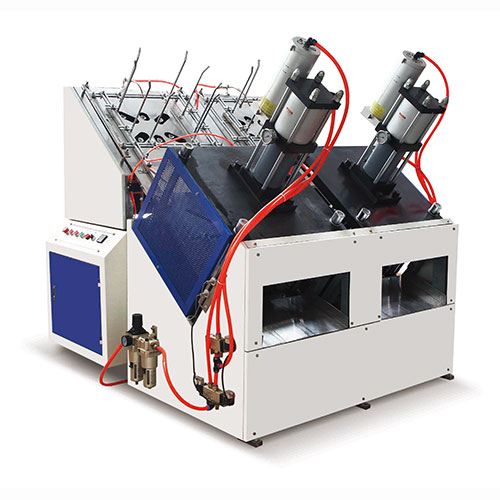

SCF-400 Middle Speed Automatic Paper Plates Machine
Main Technical Parameter：
| Model | SCF-400 |
| Produce speed | 50-70pcs/min |
| Raw material | 100-1000gsm(raw pape，white board paper) |
| Total power | 220V/50HZ or 380V/50HZ |
| Plate size | Diameter：4-10 inches(can be customized) |
| Packing size | 1700x1650x1900mm（LXWXH） |
| Machine weight | 1000kg |
| Air sources | Work pressure 1.2Mpa |
| QLS-8X250RT | 10" |
| QLS-8X300RT | 12" |
| The minimum cross section(Soft wire) | 0.5 mm2 |
Supplier introduction
Wenzhou Changs Machinery Co.Ltd is one of the first company specialized in manufacturing printing machines, packing machines,paper straw machine,plastic machine and paper converting machines,has owned export and import license since 2004.
To consider our full service convenience, we have set up service office and showing room at DRAGON-MART of Dubai to provide technical service for customers from Middle East and Africa in 2006, and also we have established technical support offices in Mexco, Egpty and Singapore, our service has satisfied with all of our customers. We enjoy sound reputation in oversea’s market and domestic.
To serve buyers the best machine and ensure our machines are with reliability quality, our factory employed skilled engineers and using advanced technology equipment, the raw material and components are carefully selected. meanwhile, we have built closely cooperative relationship with domestic colleges, universities and R&D institutes. Further on we have established a solid relationship with reliable equipment suppliers and our service team are got rich experience in the industry.
Tel: +86-577-86009991 / 86059991
Fax: +86-577-86066075
